Sinbosen DS-10Q 4 channel professional power amplifier for dual 15 inch speaker

Sinbosen DS-10Q 4 channel professional power amplifier for dual 15 inch speaker

Sinbosen DS-10Q 4 channel professional power amplifier for dual 15 inch speaker
Sinbosen DS-10Q 4 channel professional power amplifier for dual 15 inch speakerSinbosen DS-10Q 4 channel professional power amplifier for dual 15 inch speakerSinbosen DS-10Q 4 channel professional power amplifier for dual 15 inch speakerSinbosen DS-10Q 4 channel professional power amplifier for dual 15 inch speakerSinbosen DS-10Q 4 channel professional power amplifier for dual 15 inch speaker
CategoriesAmplifier For Top Speaker
BrandSinbosen| Audio sound system manufacturer
ModelDS-10Q
Channels4 channel power amplifier
TypeProfessional Amplifier
8Ω Output Power1350W x 4
4Ω Output Power2100W X 4
ColorBlack, Blue
CertificationCE ROHS, TUV
ClassTD
Warranty3 Years
CapacitorsSiemens capacitors 3300uf/200V
Special serviceOEM service offered
ForDual/Single 15 Inch line array speaker
UseStage/karaoke/concert/party/Touring/dj
FOB portGuangzhou
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal
Update TimeMar 28,2024
Detail Information

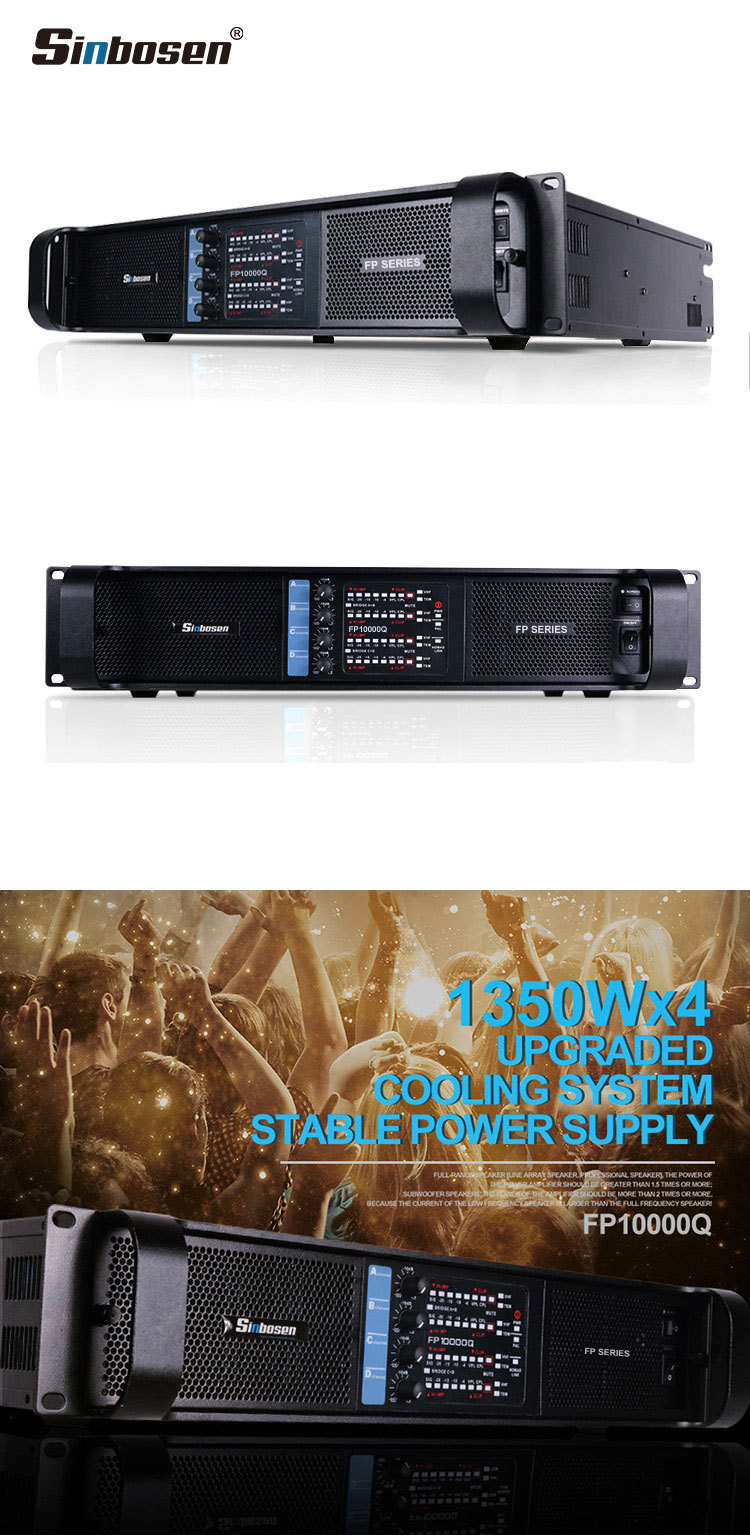

Sinbosen DS-10Q Professional Power Amplifier 1350W * 4Channels

DS-6Q
DS-8Q
DS-10Q
DS-20Q
DS-22Q
Channels
4 Channel Power Amplifier
Class
Class TD Power Amplifier
8Ω Stereo Power (RMS)
625WX4
1000WX4
1350WX4
2200WX4
2500WX4
4Ω Stereo Power (RMS)
1300WX4
1600WX4
2100WX4
4000WX4
4650WX4
8Ω Bridged Power(RMS)
2500WX2
3200WX2
4200WX2
8000WX2
9300WX2
4Ω Bridged Power(RMS)
3000WX2
3800WX2
5000WX2
9000WX2
15000WX2
  • DS-10Q Amplifier Performance Description

-4 Channel Class TD Switching power amplifier

-4 x 2,100 Watts into 4 Ohms,4 x 1,350 Watts into 8 Ohms

-Create SUPER sound quality,good for single15”/dual15” speaker

-Separately controllable on Gain

-Scalable Voltage Peak Limiter (VPL)

-Bridge-mode operation for Touring Applications

-Comprehensive protection scheme

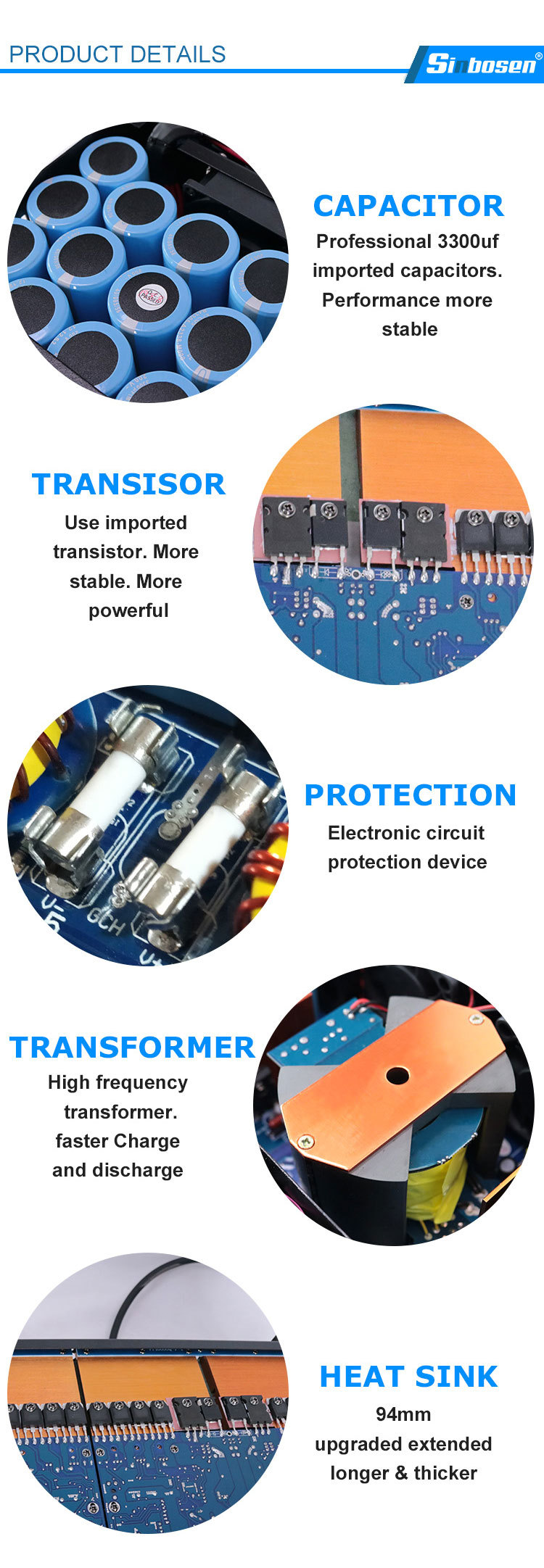

-Use 12Pcs Original Siemens high quality capacitors 3300uf 200V +4pcs 2200uf Capacitors

-Use Original ONSEMI transistor

-Original Neutrik XLR*/Speakon connectors

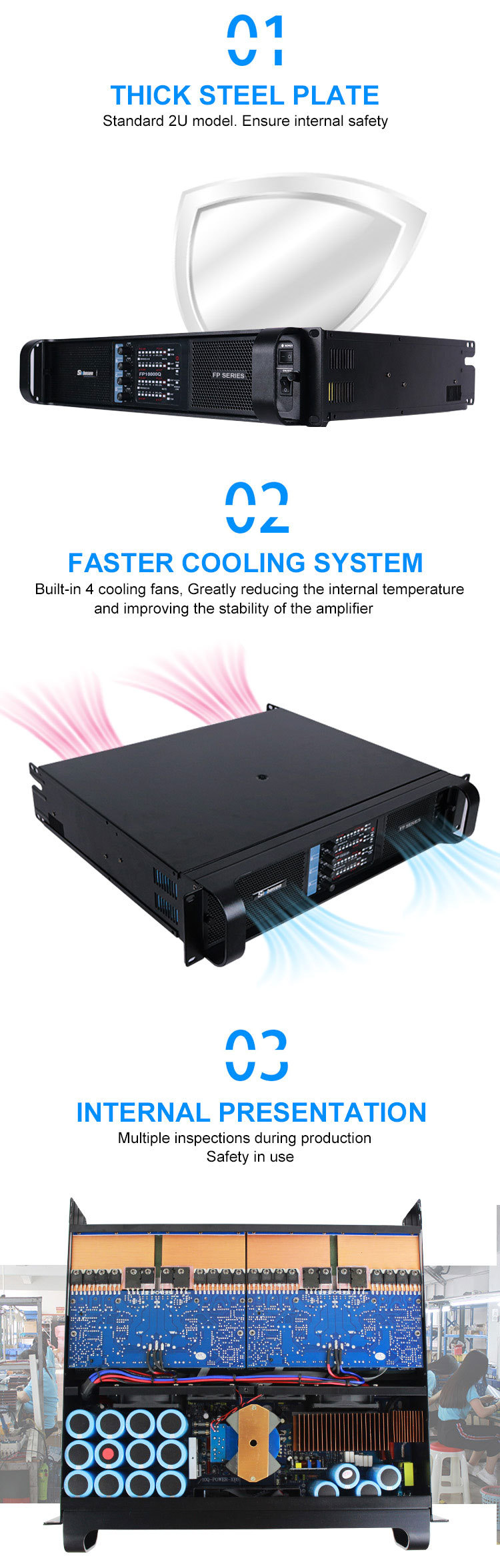

-Extended heatsink board to 95 mm

-Temperature protection;Over current protection;Short circuit protection built-in
DS-10Q SPECIFICATIONS:

-Frequency Response(+0/-0.3dB,1W/8Ω): 20 Hz - 34 kHz

-THD 20 Hz - 20 kHz for 1 W: <0.1%

-Signal-to-Noise Ratio: >112 dBA

-Channel separation (Crosstalk) at 1 kHz: >70 dB

-Input Connectors (per channel): 3-pin XLR, electronically balanced

-Output Connectors (per channel): Binding Posts 2-pole

-TourClass Protection: ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush,sub/ultrasonic input

-Operating voltage, 230 V / 115 V nominal: 130-265 V / 65-135V selectable

-Voltage Gain(dB): 23, 26, 29, 32, 35, 38, 41, 44 dB selectable

-Input impedance: 20 kOhm

-Level adjustment (per ch.): Front-panel potentiometer, 31 position detented from -inf to 0 dB

-Dimensions (W*H*L): 88mmX483mm×396mm

-Packing dimension (W*H*L): 180mmX560mm×500mm

-Net weight: 12.5kg

-Gross weight: 14.5kg

SUITABLE FOR
Sinbosen DS-10Q Amplifier Feedbacks

Must know before buying:

Full-range speaker [line array speaker, professional speaker]: the power of the power amplifier should be greater than 1.5 times or more;

Subwoofer speaker: The power of the amplifier should be more than 2 times or more, because the current of the low frequency speaker is larger than that of the full frequency speaker!
